C-13S introduce

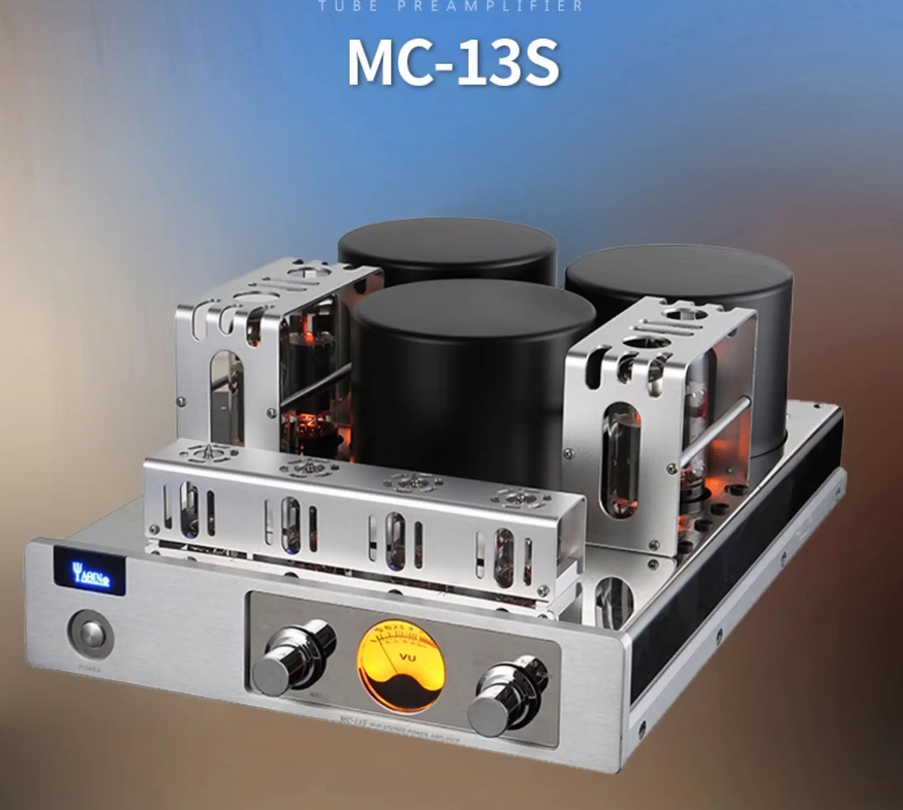

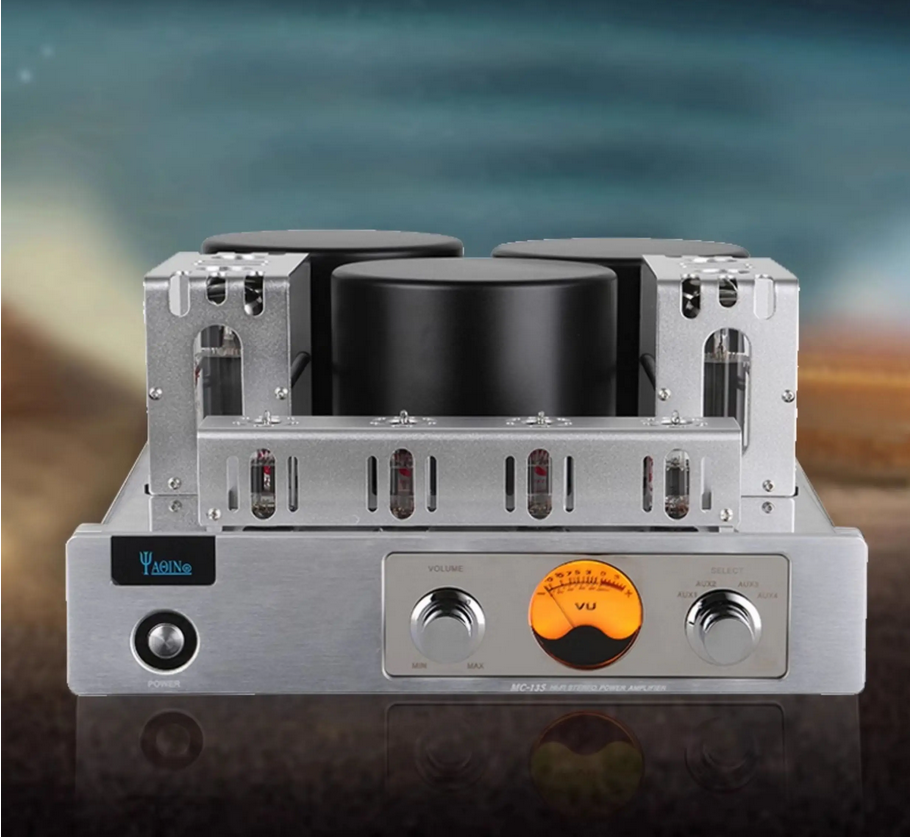

This high-quality vacuum tube amplifier delivers warm and rich sound, faithfully reproducing musical details for an enhanced listening experience. Featuring a silver metal chassis and four distinctive blue tubes, it combines excellent audio performance with an attractive design that complements any audio setup. Equipped with left and right output terminals, it supports a wide range of speakers, suitable for both home and professional use. The amplifier weighs approximately 42 POUNDS and includes a power cord (not shown in images). 4 AND 8 OHMS.
Parameters

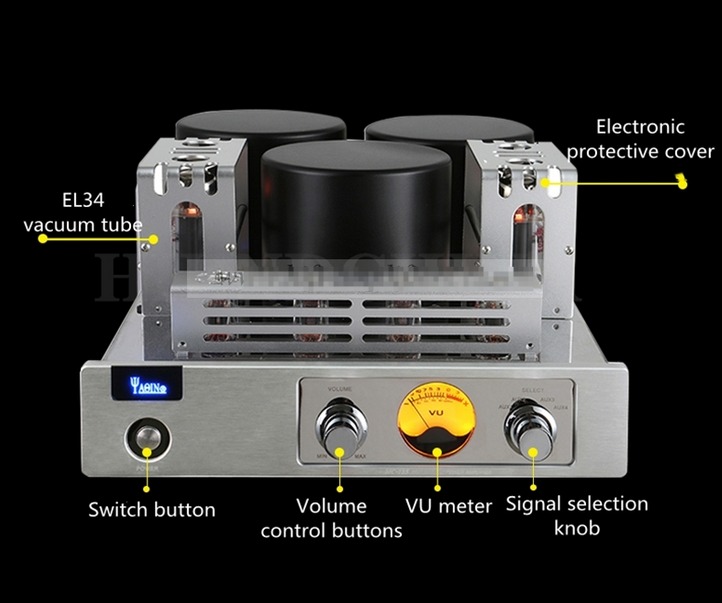

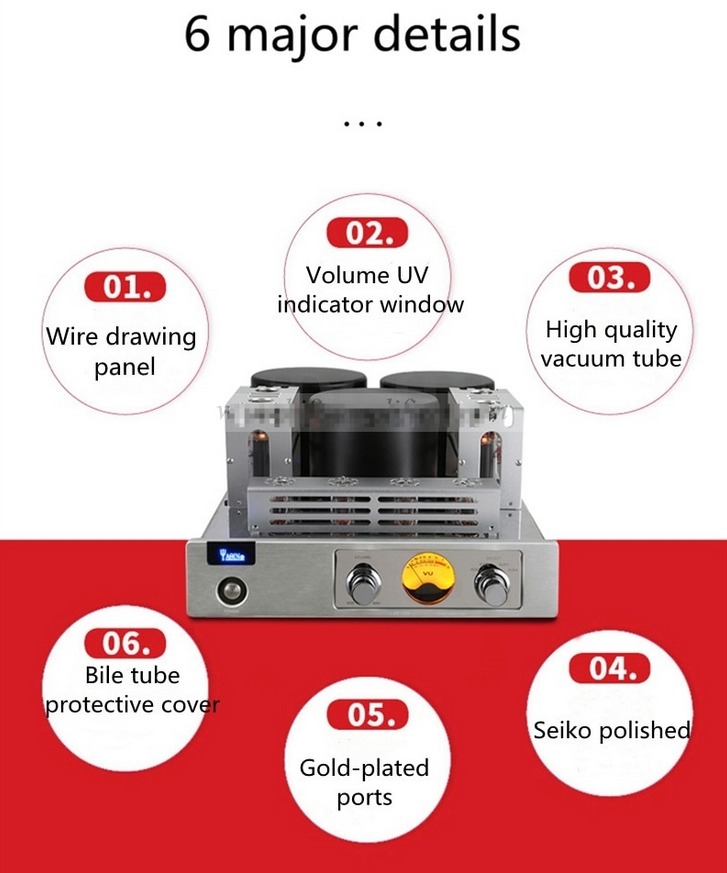

1.An analog VU meter on the front panel to monitor the average of the two channel output levels;
2.Class A push-pull power amplifier to reduce distortion;
3.Ultra linear push-pull amplifier provides greater output power;
4.Output transformers manufactured with Japanese silicon steel sheet and high-quality enameled wire, which offer a wide dynamic range at full rated output;

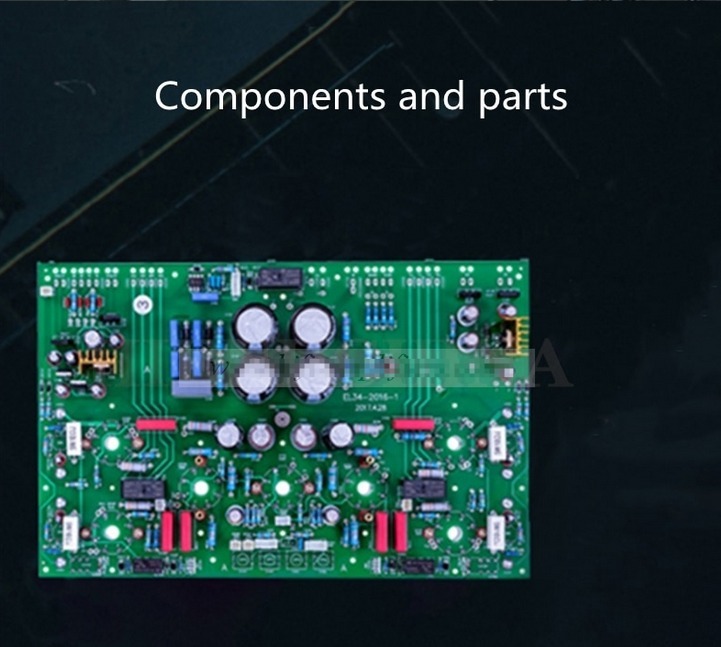

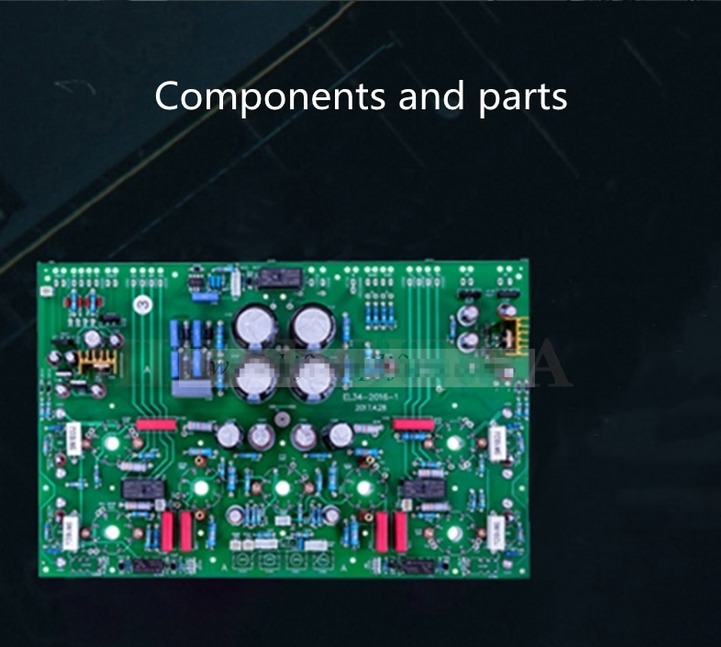

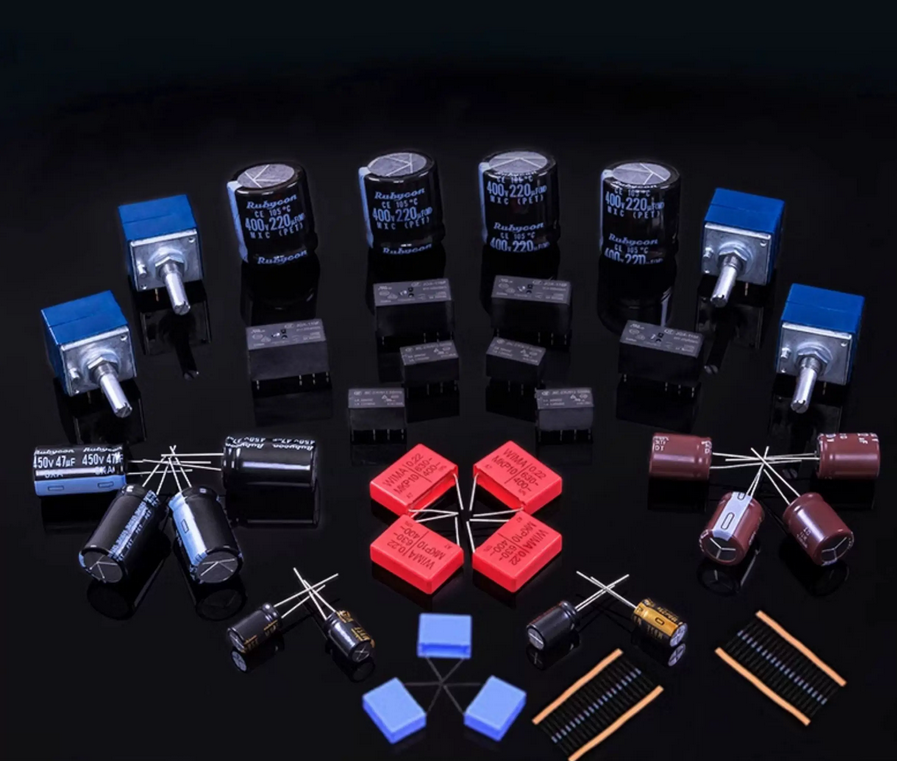

5.Utilizes the audiophile capacitors and high quality metal precision resistors dedicated for audio frequency;
6.Beautiful heavy duty chassis (stainless steel top, steel bottom) and aluminum panel and bezels.

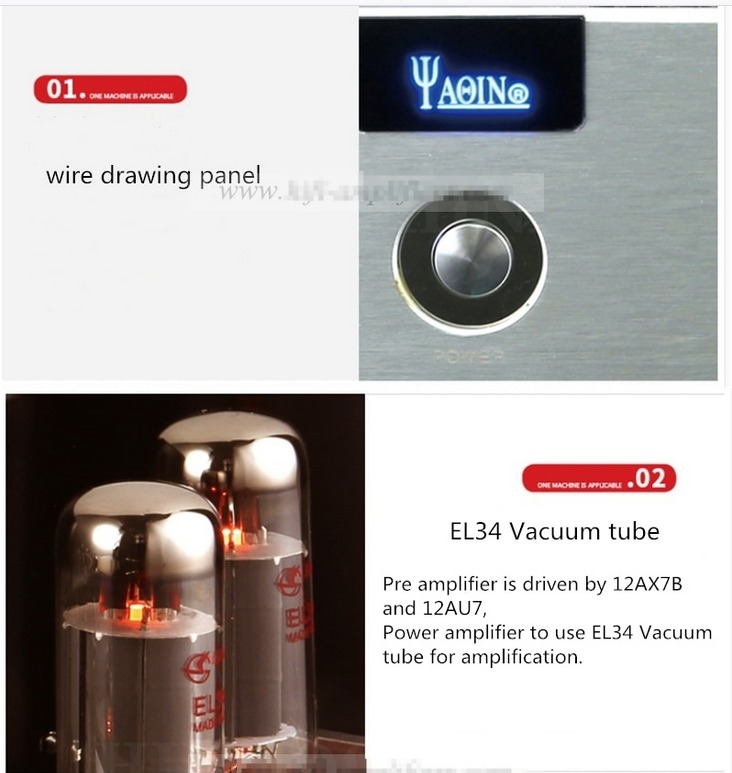

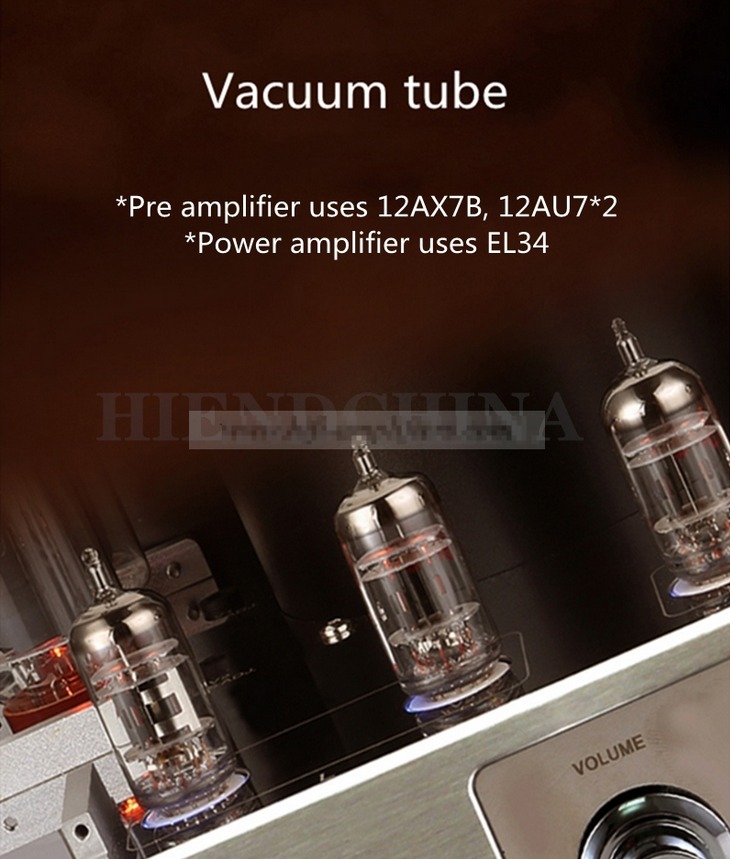

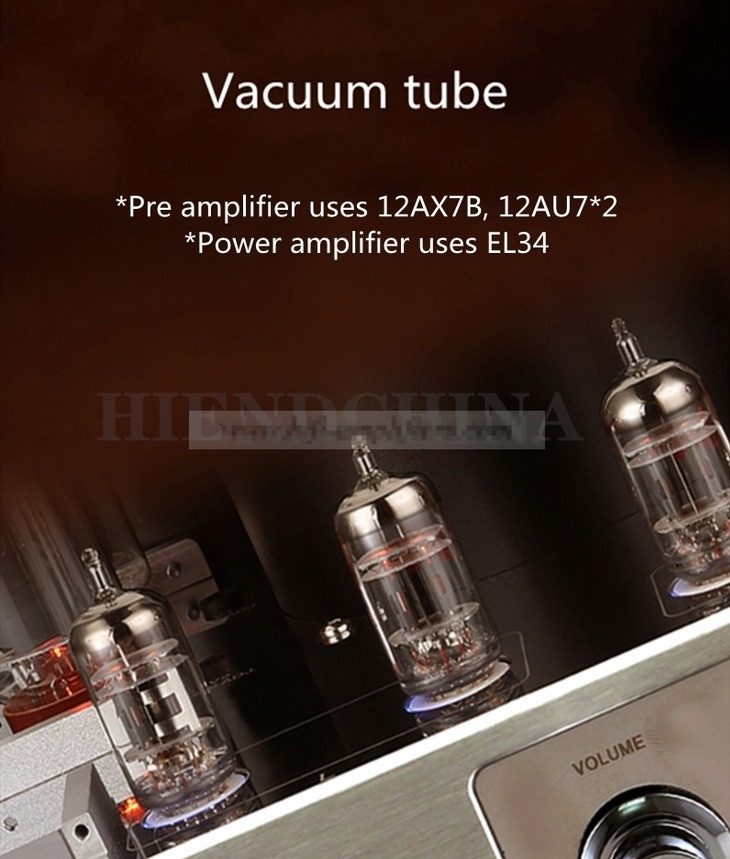

7.Tubes: EL34× 4 (Output Tubes) , 12AXT7 × 4 (Voltage amplifiers and drivers),12AU7x2
Maximum Output: 40W per channel (8Ω)

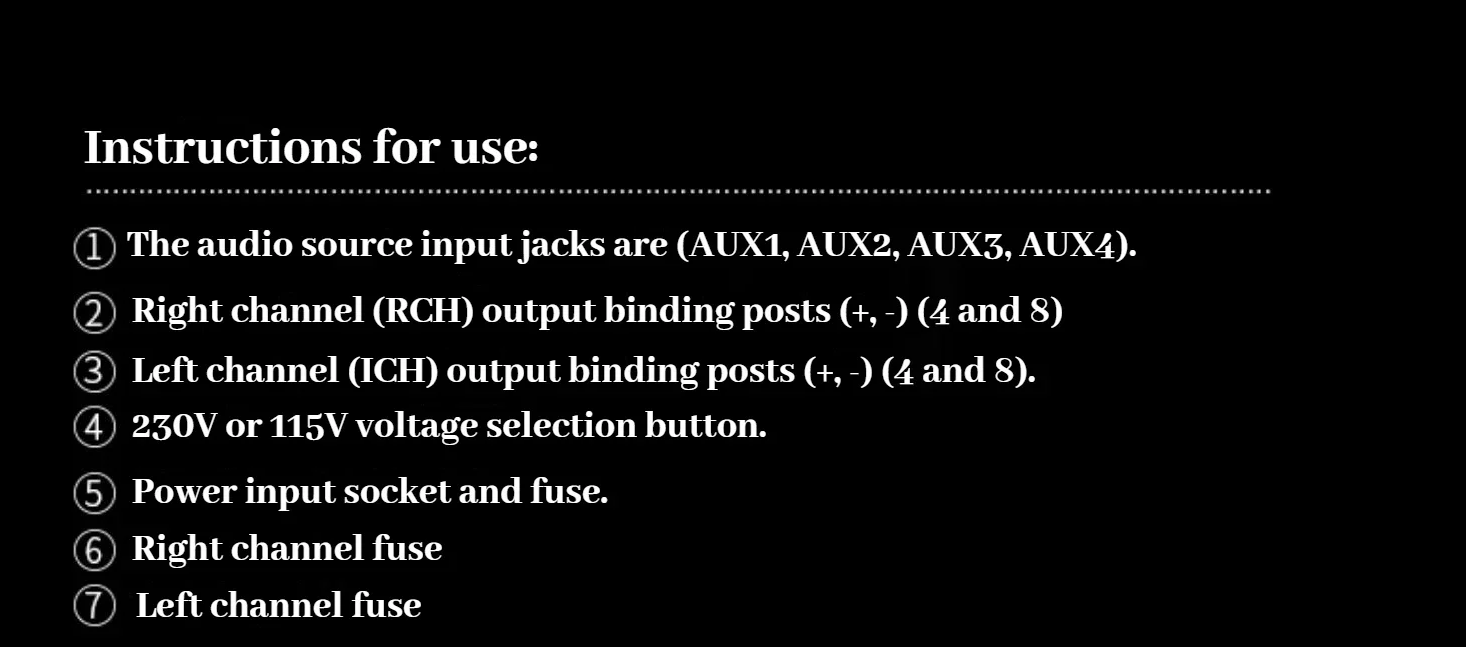

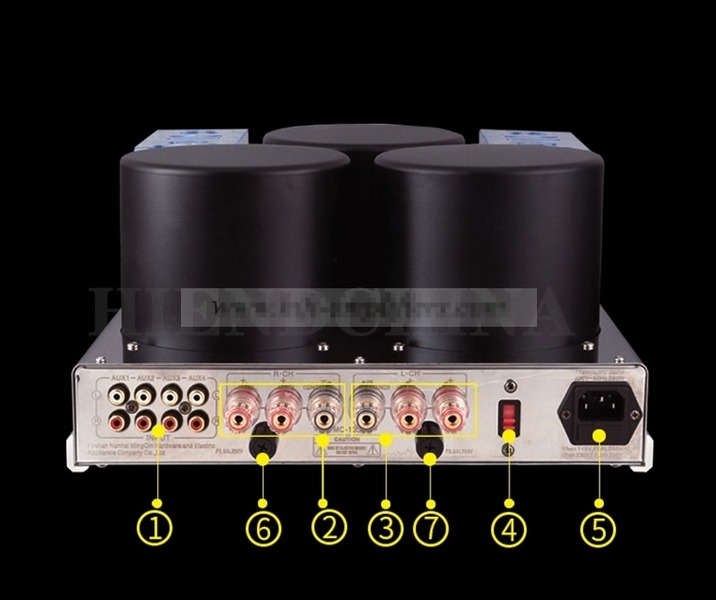

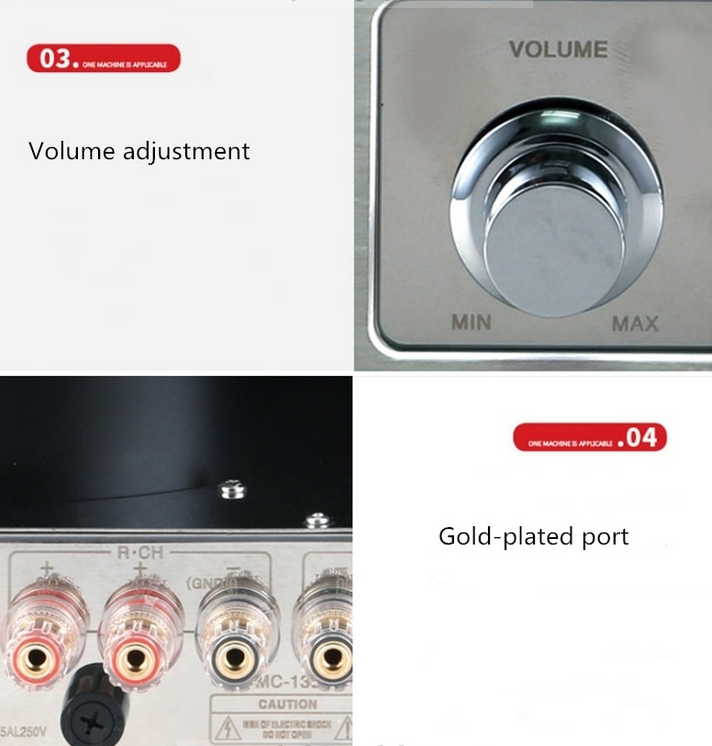

Output Jacks: Two channels with two groups gold plated jacks
Output Impedance: 4Ω and 8Ω
Input Sensitivity: 0.25V
Input Impedance: 20KΩ
Input Jacks: 4 Groups gold plated isolated RCA jacks (CD, DVD, Tape, and Tuner)
Distortion of Harmonic Wave: ≤0.9% (at 28W)
Frequency Response: 10Hz ~ 76KHz (-2dB)
Signal-to-Noise Ratio: >85dB (A weight)
Supply Voltage: AC 110V / AC 220V(230v) /AC240V , 60/50Hz
Power Consumption: 220W
Net Weight: 18kg (40lb)
